Description

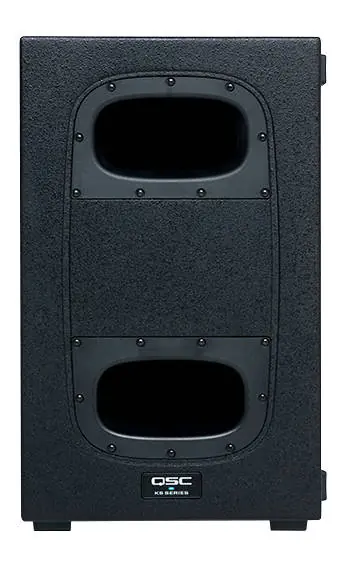

The KS112 is an ultra-compact active subwoofer for installation and highly portable entertainment applications. The KS112 is a highly portable, single 12-inch bandpass design subwoofer, powered by a 2000 Watt peak power Class D amplifier module. The cabinet is constructed of premium birch and includes high-quality, low noise casters.
Two M20 threaded pole receptacles are available for a positive, wobble-free connection to a threaded speaker pole in either vertical or horizontal deployment (pole not included).
Features
High Output in an ultra-compact form factor
2000 Watt Class D amplifier module
12-inch, long-excursion driver; 6th order bandpass design
Intrinsic Correction tuning and loudspeaker management
Refined, professional appearance looks great in any application
Rugged, painted wood enclosure for long life and lasting durability
Deployment in either vertical or horizontal positions with dual M20 speaker pole fittings
Specifications
Configuration: 6th-Order Bandpass Subwoofer
LF Transducer: 12-inch (305 mm), Cone
Frequency Response (-6 dB): 41 Hz – 108 Hz
Frequency Range (-10 dB): 38 Hz – 121 Hz
Maximum Rated SPL1: 128 dB @ 1 m (peak)
Amplifier: Class D; 2000W (peak)
Cooling: Low-noise, variable speed fan
Controls: Power On/Off, Gain Control, Rotary encoder, 2 x selection buttons
Indicators: 2 x Power LED (front and rear), Input Signal LED, Limiter Active LED
Connectors: 2 x locking XLR/F 1/4-inch combo, 2 x XLR/M (Loop-thru Output), 1 x locking IEC power connector
AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption: 100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A
Enclosure Details
Enclosure: 15 mm Birch Plywood
Colour: Black (RAL 9011)
Grille: Internal woofer cover
Dimensions: 24.5″ x 15.5″ x 24.25″ (62.2cm x 39.4cm x 61.6cm)
Net Weight: 28.4 kg (62.6 lbs)
Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Included Accessories: 4 x Low-Noise, Heavy Duty Casters
